Truck Tyres Net Pneumatic Marine Fender 3000x6000mm Foam Fenders Marine

Name: Truck Tyres Net Pneumatic Marine Fender 3000x6000mm Foam Fenders Marine
Brand: HAOZHIYUE
Price: 1 USD

Buy cheap Truck Tyres Net Pneumatic Marine Fender 3000x6000mm Foam Fenders Marine product

Brand Name : HAOZHIYUE

Model Number : HZY-50

Certification : CCS/BV/LR/IRS/IACS

Place of Origin : China

MOQ : 1pc

Supply Ability : 30pcs/month

Delivery Time : 5~8 working days

Packaging Details : Nude,pallets or according to request

Material : Natural rubber/ Synthetic tire cord layers

Color : Black

Size : 3000x6000 3300x4500

Warranty : 3 years

Lifespan : More than 10 years

Application : ship, hydroponics, Floating and berthing(ship to ship or ship to dock),

Usage : boat rubber fender, Protect Shipboard, waterproof, anti-explosion rubber fender, Protect Boat

Contact Now

Floating Pneumatic Marine Rubber Fender Marine Boat Fender with truck tyres net

Product Overview

The following factors should be considered in the selection of pneumatic fenders:

(1) Maximum energy absorption E; (2) Reaction force; (3) Distance requirements after berthing of two ships or the berthing distance from the ship to the dock, including the maximum distance and the minimum distance; (4) The size of the ship; (5) Factors such as wind waves and temperature changes in the actual use environment.

The selection of pneumatic fender system first needs to determine the collision energy of the ship when berthing and after berthing, and select the specifications of pneumatic fender according to the distance requirements (maximum distance and minimum distance) after berthing, and verify whether the maximum reaction force of pneumatic fender is within the allowable range of hull design.

If it is necessary to improve the energy absorption of the pneumatic fender, increasing its diameter is an ideal choice. The number and spacing of pneumatic fenders are determined according to the size and actual use of the ship.

Yokohama pneumatic marine rubber fender can be delivered in various sizes and types. Chain and tyre net (CTN) type is usually recommended to protect the fender body, but sling type or body only is also available.
​

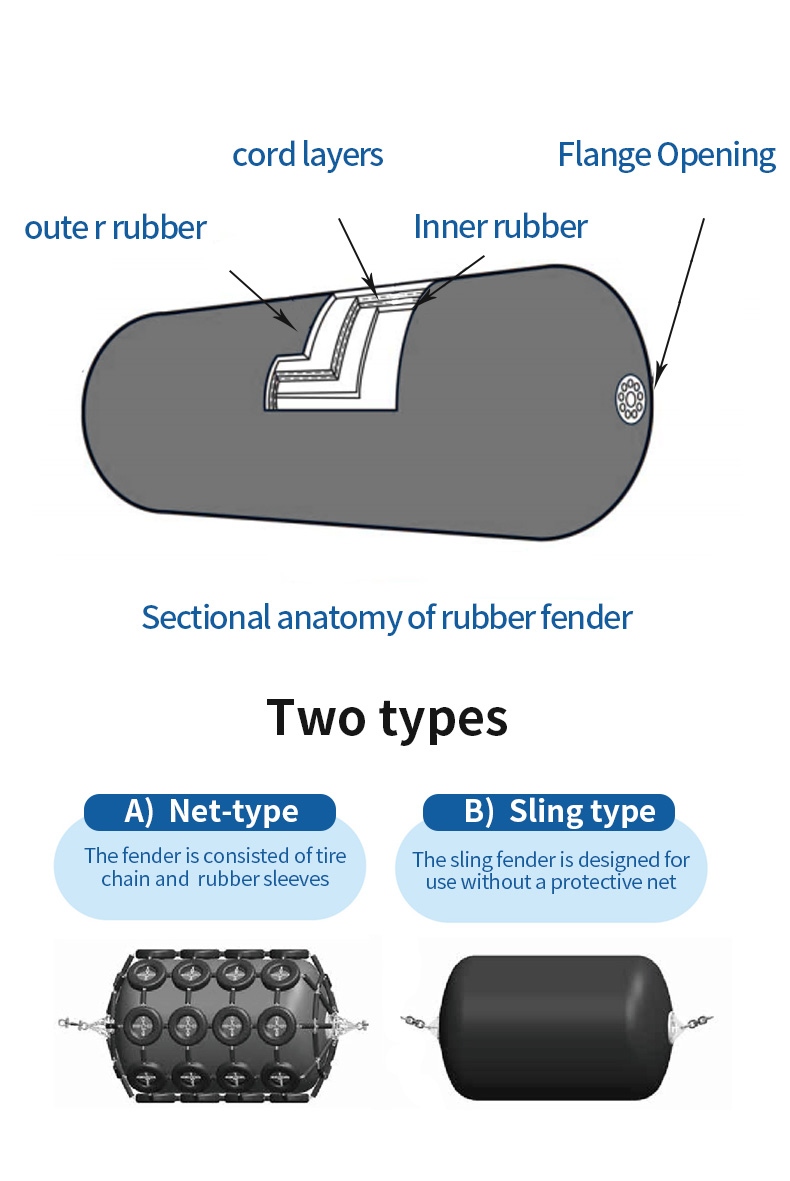

1.Outer Rubber
 Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of external force.
 2.Cord layers
 Reinforced cord rubber layer is composed of winding synthetic cord layer, it is mainly used for maintain the internal air pressure.
 3. Inner Rubber
 On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.
 4. End Flange
 The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.

Truck Tyres Net Pneumatic Marine Fender 3000x6000mm Foam Fenders Marine

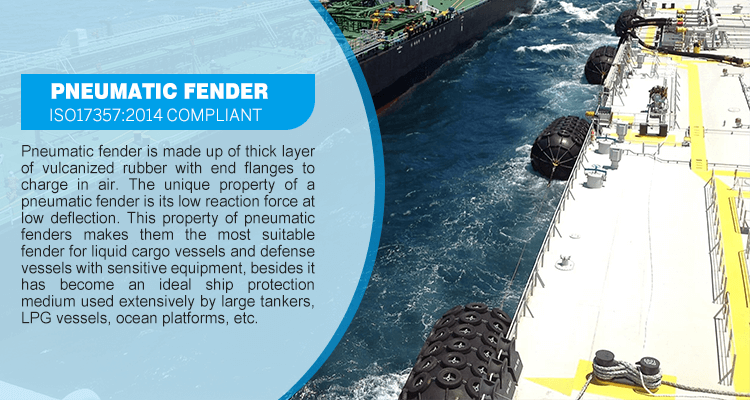

PNEUMATIC MARINE RUBBER FENDERPneumatic Rubber Fenders have been in use for around 50 years. It is the leading anti-collision device for marine application in the world. This compressed air filled rubber fender is used as a protective medium for ship-to-ship contact (STS), ship to quay (STQ) and ship-to-berthing (STB).

FEATURES
• Easy and fast to deploy
• Very low reaction and hull pressure
• Performance adjustable by varying initial pressure
• Suitable for areas with large or small tides
• Maintains large clearances between hull and structure
• Optional chain-tyre nets for heavy duty applications


Our Advantages

Why choose HAOZHIYUE pneumatic rubber fender?

1.Learder since 1992, with more than 20 years produce experience;

2.Best quality with 3 years guarantee period;

3.Comply with ISO17357:2002;

4.Certificates BV,CCS,LR,IRS etc available;

5.Customized different dimention according to requirements;

6.Lifespan more than 10 years;

7.Different dimension stocks, the delivery time can be within 3 days;

8.Can be deflated in transit.

9.Long time good after-sale service;

10.Professional engineer recommend suitable dimension and quantity of rubber fender.

---Material

Synthetic-tyre-cord layers commonly used in tyres, have been proved to provide strong efficient reinforcement layers in fenders. Each layer is coated with rubber compound on both sides as well as in between synthetic-tyre-cord threads, hence isolating all cords from each other.

1. Wrap threads that run vertically through the synthetic -tyre-cord pattern.

2. Weft threads that run perpendicular to the wrap threads.

---BV Inspection:

Truck Tyres Net Pneumatic Marine Fender 3000x6000mm Foam Fenders Marine

---Productive Process:

Certifications

Delivery

FAQ

1. Q:What’s the guarantee for your products?

A:Guarantee period for our product is 3 years, during this period, except man-made damage, we will repair or exchange new one for free.

2. Q: Do you have stocks? In which size?

A:Yes, we have some normal size in stocks,for example dia1.2m,dia1.5m,dia2.5m,other size pls confirm with our company directly.

3. Q:Are you manufacturer or trading company?

A: We are manufacturer in this field for more than 20 years, with rich produce experience.

4. Q:We don’t know which size is suitable,can you help me?

A:No problem,pls tell us information about your ship, our engineer will recommend suitable size for you.

5. Q:What’s the delivery time?

A: Usually within 3 days after receive payment.

6. Q:What’s your payment term?

A:T/T or L/C at sight

7. Q: What’s your MOQ?

A: 1 PC.

8.Q: What’s the material of your products ?

A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.

9.Q: Is OEM service available ?

A: yes
